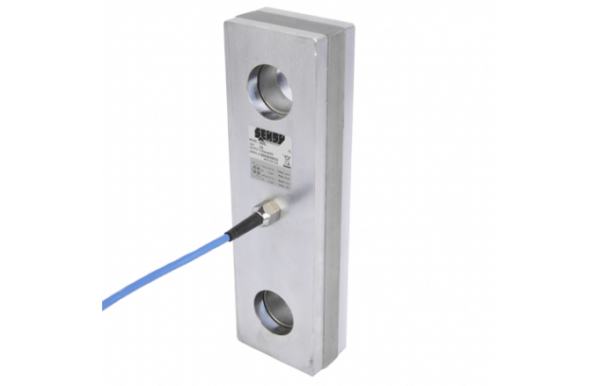

Tension Link Load Cells

Description

Tension link load cells specially designed for load limitation on hoisting devices.

  • Sturdy design o Breaking load > 500 %
  • CE certified for hoisting devices
  • Protection class : IP66
  • Material : stainless steel (5200L), nickel plated steel (5205L)
  • Easy to install (standard shackles)
  • Cable length : 0.5…5 t : 3 m 10 t : 6 m
  • Complete range of “CE” certified electronics and load limiters

The SENSY’s load cells 5200L-5205L are perfectly designed to the following applications :

  • Hoisting devices and crane’s security in combination with load limitation electronics : (BRIDGE-BOY, CRANE-BOY, …)
  • Load limitation for lifts

CAPACITIES :

  • 5200L : (0.5) – (0.75) -(1.5) -(3) -(5) – (10) t
  • 5205L : 0.5 – 0.75 – 1.5 – 3 – 5 – 10 t
